Descrizione
Features:
1.LOCK: Press the”lock” button of remote once, parking light will
flash once, siren sounds once, central door lock automatically.
LED indicator flash once per second.( Default no siren no sound)
2.UNLOCK: Press the “unlock”button of remote, parking light will
flash twice, siren sounds twice, central door unlock automati-
cally, LED indicator will be closed.
3.CAR SEARCH: Press”bell”button of remote once, parking light
will flash 30s, the siren sounds, press the same button again
will stop; if no this button press lock button many times.
4.ELECTRONIC DOOR LOCK/PNEUMATIC DOOR LOCK :
The main unit default electronic lock .
5. LEARNING: learning: press learning switch once,
turning light flash once, after press remote any button, the
was learned, if need to learn more remote ,repeat it
again.
6.CLEAR : press the learning switch 3 seconds turning
light flash 3 time it was cleared.
7.POWER WINDOW OUTPUT (-25s)
Press” lock ” button once, turning lights flash once and door
lock, now the power window signal output negative
trigger 25s ,the function depend on the car circuit delay.
8.TRUNK RELEASE (-3s,50mA)
Press the button “unlock/ trunk /mute” on the remote transmitter
3 seconds to release the trunk while the parking lights
will flash three times. it assisted by an actuator & a relay.
Specification:
Main unit:
Working voltage: DC 12 ±3V
Static current:8.5 mA
Turning light:7.5 A x 2
Central locking:10A/433.92
Working frequency:433.92MHZ
Remote control:
Working voltage: DC 12V
Average static current:0 mA
Control box size: 8.6 x 6.6 x 2.6 cm (L x W x H)
Remote Controller size: 9.8 x 3.8 x 1 cm (L x W x H)
Weight:0.22KG
Packing size:125*92*75mm ,50PCS/canton ,canton size:MEAS:41*34*40CM

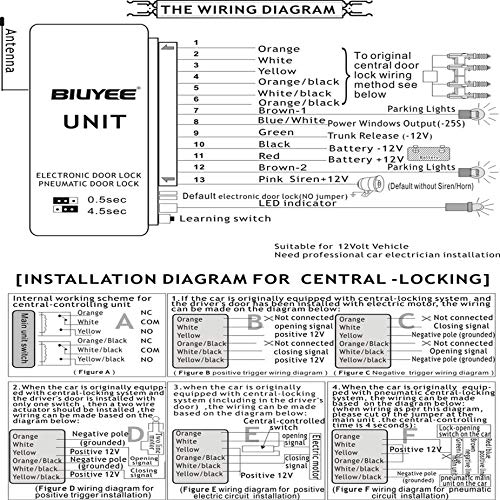

About installation:
The product need installed by the Profesionales with Car electrician
certificated
For 12V DC car which have central door lock<
1. BLOCCO: Premi una volta il tasto "di bloccaggio" di telecomando, luce di parcheggio
lampeggia una volta, la sirena suona una volta, la serratura della porta centrale automaticamente.
L'indicatore LED lampeggia una volta al secondo (impostazione predefinita: nessuna sirena, nessun suono)
2. SBLOCCO: premere il pulsante "sblocco" del telecomando, si accenderà la luce di parcheggio
lampeggia due volte, la sirena suona due volte, la porta centrale si sblocca automaticamente
