Descrizione
Features:
LOCK: Press the “lock” button of remote once, parking light will flash once,
Siren sounds once, central door lock automatically. (siren option)
UNLOCK: Press the “unlock” button of remote, parking light will flash twice,
Siren sounds twice, central door unlock automatically;
CAR SEARCH: Press “bell” /mute / “trunk” button of remote once, parking light will
Flash 15s, the siren sounds, press the same button again will stop;
ELECTRONIC DOOR LOCK :
The main unit for electronic lock only.
CODE LEARNING: System allows to have 2remotes at the same time, Press
Learning switch once, parking light keep bright, then press any button of
Remote, parking light flash twice to confirm
CODE DELETING: Press leaning switch for 5s, parking light flash twice to
Confirm
Aux negative output or trunk release: when unlock press the for 3 set-
Cond the trunk release. (The car need added a motor/actuator)
Specification:
Working voltage: DC 24 +3V
Static current: 8.5mA
Output current:
Turning light 7.5 Ax 2,
Central locking: 10A
Working frequency:
315-316 /433.92MHZ

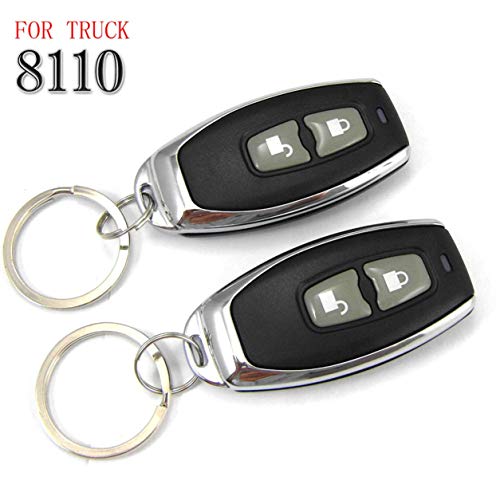

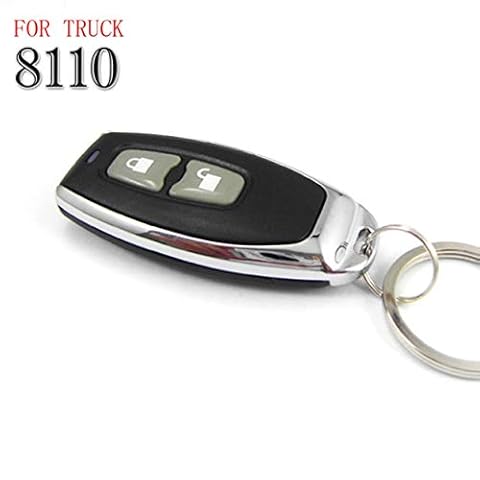

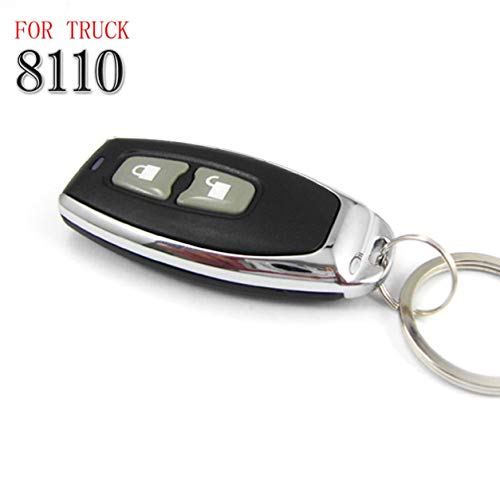

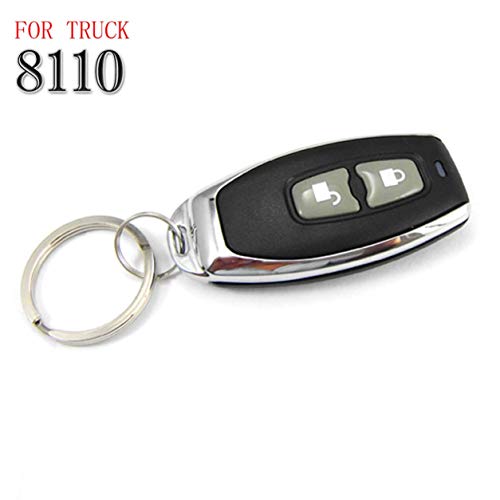

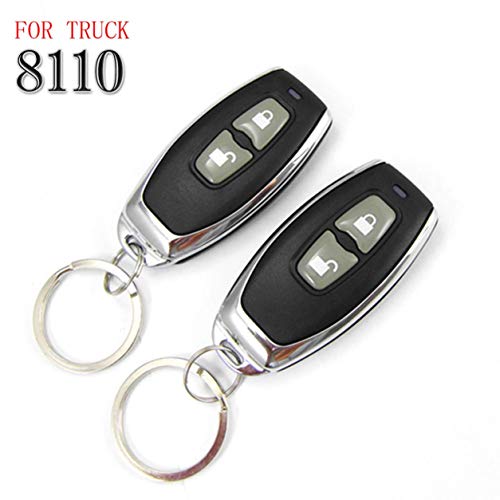

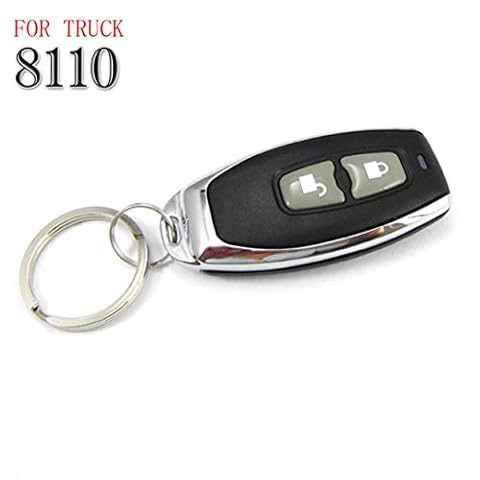

Remote:
Working voltage: DC 12 V
Average static current: 0mA
Battery: 23 /27A/12 V
Fastener battery: CR2016

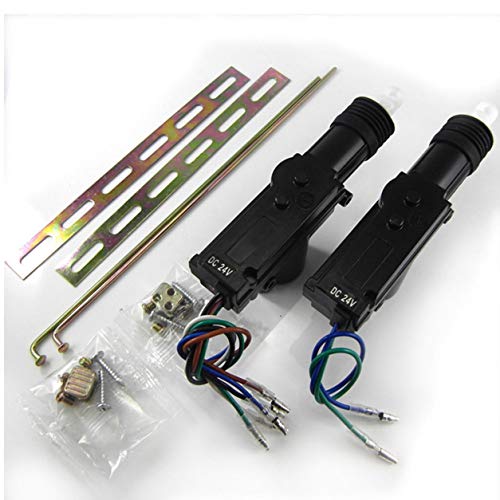

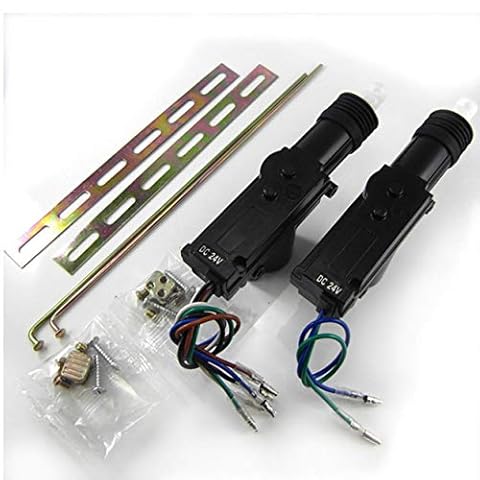

Actuator
Working voltage: DC24V
Working temperature: -20°C -+70°C
Current consumption: 0.15A-2.22A
Endurance (up & down): 100,000 times +
Push & pull force: 4kg
Travel distance: 20mm
Package included:
1x Main Control Unit
2x Remote Control
2x Actuator
1x Wiring Set
1x English User Manual
LOCK: premere il tasto “lock” “del telecomando una volta, la luce di parcheggio lampeggerà una volta,
La sirena suona una volta, la porta centrale si blocca automaticamente. (opzione sirena)
UNLOCK: premere il tasto “unlock” del telecomando, la luce di parcheggio lampeggerà due volte,
La sirena suona due volte, la porta centrale si sblocca automaticamente;
RICERCA AUTO: Premere il tasto “campanello” / mute / “tronco” del telecomando una volta, si accenderà la luce di parcheggio
