Descrizione
Technical Data:
Compatible Cameras:Olympus Panasonic cameras (E-TTL II autoflash)
Guide No. (1/1 output @200mm): 60(m ISO 100); 190 (feet ISO 100)
Flash Coverage
:·20 to 200mm (14mm with wide panel)
·Auto zoom
·Manual zoom
·Swinging / tilting flash head (bounce flash): 0° to 360° horizontally and -7° to 90° vertically
Flash Duration: 1/300 to 1/20000 seconds
Exposure control system: E-TTL II autoflash and manual flash
Flash exposure compensation (FEC): Manual FEB: ±3 stops in 1/3 stop increments (Manual FEC and FEB can be combined)
FE lock: With FEL button or *button
Sync Mode: High-speed sync (up to 1/8000 seconds), first-curtain system, and second-curtain sync
Multi Flash: Provided (up to 100 times, 199Hz)
Wireless flash function: Master, Slave, Off
Controllable slave groups: 3(A, B, and C)
Transmission range:·Optic: Indoors: 12 to 15m /39.4 to 49.2 ft.
Outdoors: 8 to 10m /26.2 to 32.8 ft.; Master unit reception angle: ±40° horizontally±30° vertically.
·2.4G: 100m
Channels: Optic: 4 (1, 2, 3, and 4)
2.4G: 32（1-32）
Slave-ready indicator: Two ref indicators blink
Modeling flash: Fired with camera’s depth-of-field preview button
Auto Focus Assist Beam: Effect range: Center: 0.6-10m /2.0-32.8 feet/ Periphery: 0.6-5m / 2.0-16.4 feet
Power Supply: Ni-NH batteries (recommended) or 4*LR6 alkaline batteries
Recycle Time: Approx. 0.1-2.6s (eneloop Ni-NH batteries of Panasonics).
Full power flashes: Approx.230 (2500mA Ni-MH batteries)
Power Saving: Power off automatically after approx.90 seconds of idle operation.(60 minutes if set as slave)
Sync Triggering Mode: Hotshoe, 3.5mm sync line, Wireless control port
Color Temperature: 5600 ± 200K
Dimension: 64*76*190mm (W x H x D)
Weight: 410g

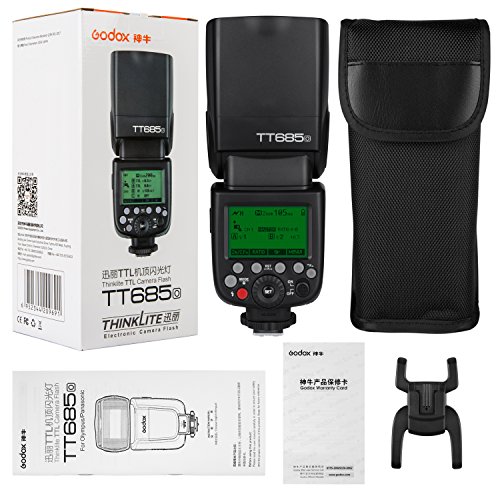

Package Contents:
1x TT685Ocamera flash
1x Mini stand
1x Protection bag
1x User Manual
[Supporto HSS] max. 1/8000 s, FEC, sincro sulla cortina anteriore e posteriore, multi flash, flash manuale. GN36, 22 passi di potenza (1 / 1-1 / 128). Tempo di riciclo di Approx.0.1-2.2s, 210 lampi di piena potenza. Zoom automatico / manuale da 24-105 mm.
[Supporto flash automatico E-TTL II] Sincronizzazione 1/8000 ad alta velocità, compensazione dell’esposizione flash, blocco dell’esposizione flash, flash di modellazione, ecc.
[Trasmissione wireless 2.4G] con funzioni all-in-one e 100 metri di ulteriore trasmissione.
[Pannello LCD a matrice di punti] Con pannello LCD a matrice di punti per offrire operazioni chiare e facili.
[Funzione flash wireless] Master, slave, off. Pieno supporto Olympus / Panasonic serie TTL camera flash. Da utilizzare come unità Master o Slave in un gruppo flash wireless. (Nota: la batteria non è inclusa)
