Descrizione
For Arduino beginners, you do not have to worry about the complex circuit of LCD drivers, and this LCD module really simplifies the circuit,
Insert this module directly into the IIC device interface of the Arduino Sensor V5.0 sensor expansion board,
Through the connection of the 4Pin sensor cable, and programming the Arduino controller, you can easily achieve the identification of slogans, display of the sensor data record.
Specification: IIC LCD2004 LCD Character Display Module
Voltage: 5V
Address: 0x3F.
Contrast adjustment: Potentiometer.
Backlight Adjustment: Jumper cable or control switch
LCD Display: Blue Backlit , White Character
PIN Definition: SDA, SCL, VCC, GND
Module Size: 99 x 60 x 22 mm

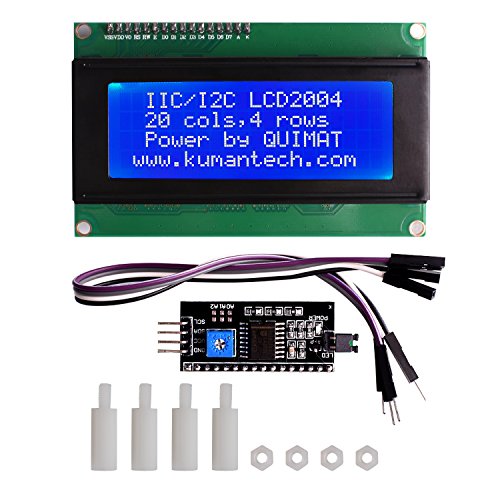

Package List:
1 x IIC LCD2004 LCD Character Display Module
1 x 4 Pin male to female bridge cable
4 x Nylon Column and Nut
IIC LCD2004 LCD character display module, uses 4 lines of 20 LCD characters
Features: Contrast Adjustment, Backlight Adjustment Switch, IIC Communication Interface
Connect by 4Pin cable, and program by the Arduino controller, you can easily achieve the identification of slogans, display of the sensor data record
Control by IIC (I2C), only need 2 IO interface, you can achieve data communication
Works with Arduino board UNO / MEGA2560. Working voltage: 5V
