Specifications:
OS:Support Windows 10 Pro and Ubuntu 18.04 System
Language: Multi -language

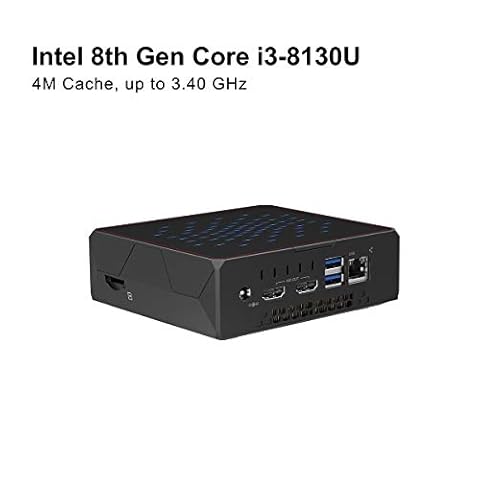

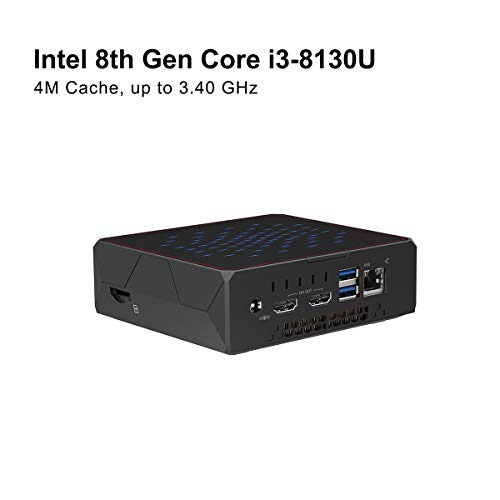

Intel CPU: Intel Kaby Lake Intel Core i3-8130U Processor(4M Cache, up to 3.4GHz)
Processor Graphics: Intel UHD Graphics 620 Installed RAM: DDR4 4GBx2, up to 8GBx2
Installed SSD: 128GB, up to 512GB
Ethernet: 1000Mbps LAN
WIFI: IEEE 802.11a/b/g/n/ac，2.4G+5.8G
Bluetooth: BT 4.0 Antenna: Internal WiFi antenna
Expand Memory: SD Card (Support 128GB)
DIY 2.5inch HDD: maximum 2TB
Performance:
# of Cores: 4
# of Threads: 4
Processor Base Frequency: 1.60 GHz
Burst Frequency: 3.40 GHz
Scenario Design Power (SDP): 4.8 W
Cache: 6 MB
Instruction Set: 64-bit

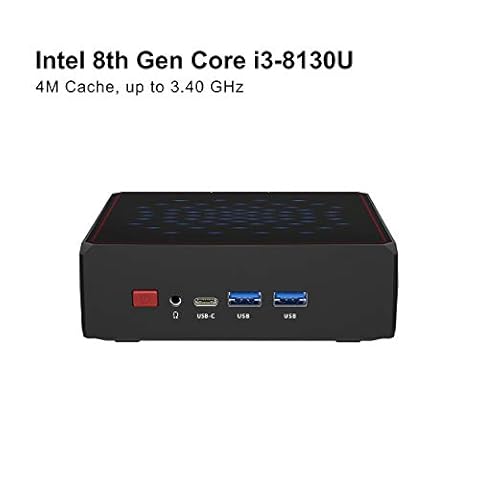

Button & Ports:
1* Power Button
1* DC in Port
4* Standard USB3.0 Port
2* HDMI Type Port
1* Type C Port
1* RJ45
1* Headphone microphone jack
1* Micro SD card slot
1* Power LED
1* Reset jack
Package Contents:
1* KB3 MINI PC
1* EU Power Adapter (DC19V 3.42A(100-240V,50/60Hz)
2* HDMI Cables (Length: 30cm&60cm)
1* Mounting Bracket
Note
1. When the operating system crashes, please do not unplug the power directly, just pressing the reset jack, the system will restart automatically.
2. The type-c port only support date transmission.
3. This Mini PC doesn’t support touchscreen monitor.
OS: Support Windows 10 Pro and Ubuntu 18.04(Windows 10 Pro pre-installed)
Processor: Kaby Lake Intel Core i3-8130U Processor(4M Cache, up to 3.4GHz)

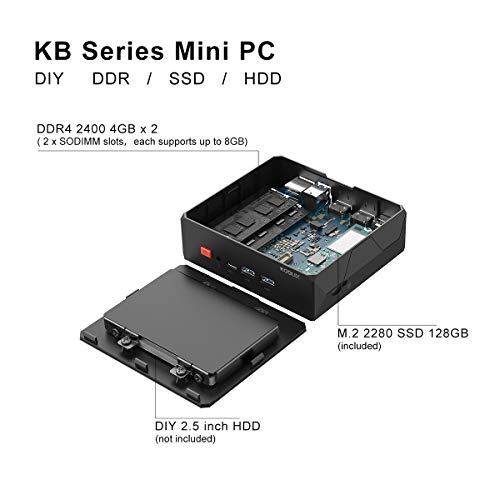

Capacity: RAM DDR4 4GBx2, which can upgraded to 8GBx2(total 16GB); M.2 2280 SSD 128GB (included) and DIY 2.5inch HDD up to 2T (no included).
Two HDMI Display Outputs, both support 4K. Support Auto Power On After Power Failure and Wake On LAN.
1000Mbps LAN, AC3165 802.11 a/b/g/n/ac 2.4G+5.8G Internal WIFI and Blutooth 4.0
