Descrizione
Features:
Mininum output power 0dBm (at 1dB gain compression)
Mininum Image Rejection 40dB
Input: 10.7-12.75GHZ
L.O.: 9.75/10.6GHZ
Noise: 0.3dB
Gain: 60dB
Descriptions:
Support Low/High band switching

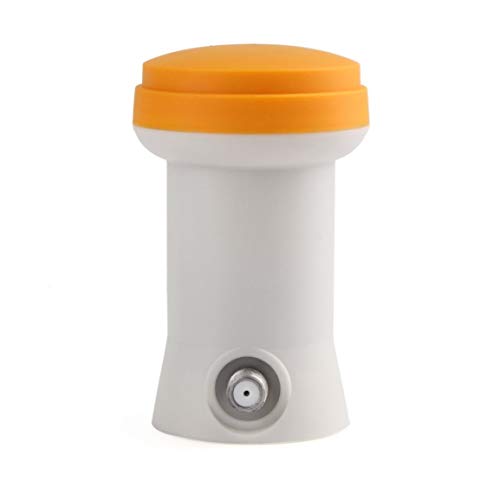

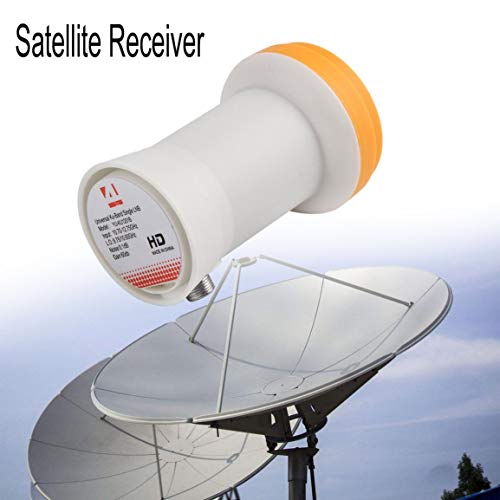

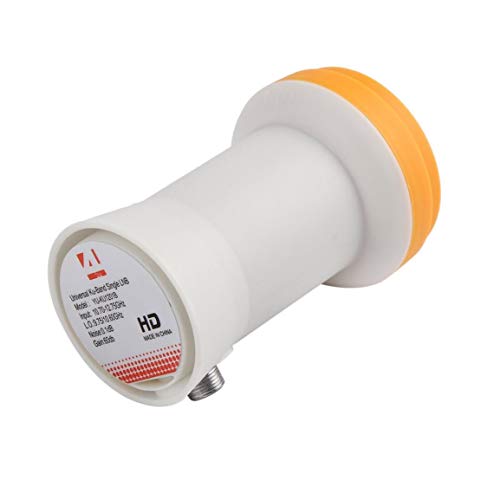

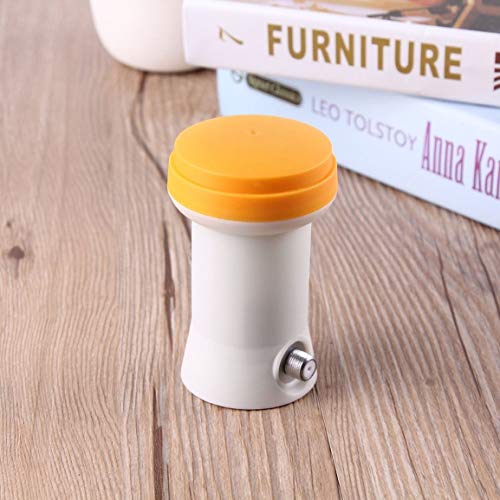

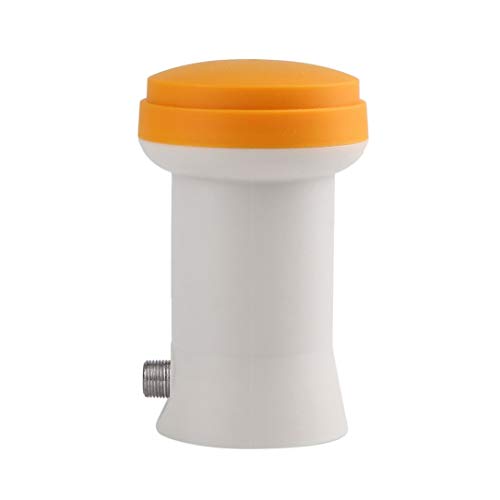

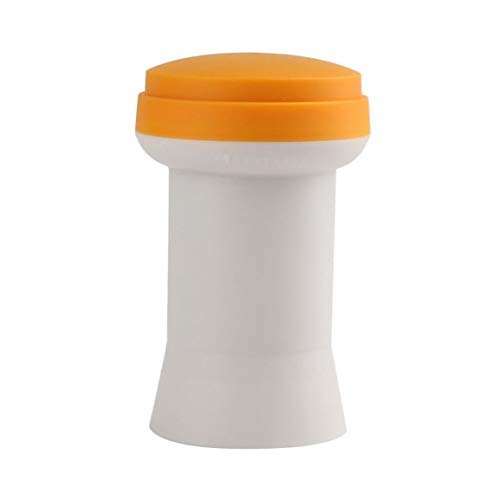

Satellite universal single LNBF
Single Ku Band
Full HD Digital KU-BAND
9.75/10.6 Dual output

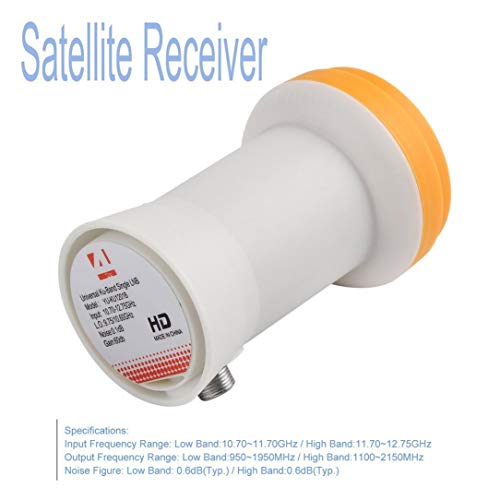

Specifications:
Input Frequency Range: Low Band:10.70~11.70GHz / High Band:11.70~12.75GHz
Output Frequency Range: Low Band:950~1950MHz / High Band:1100~2150MHz
Noise Figure: Low Band: 0.6dB(Typ.) / High Band:0.6dB(Typ.)
Conversion Gain: 60dB(Typ.)
Gain Flatness: ±0.5dB/26MHz
Cross POL. Isolation: 25dB(Typ.)
L.O. Frequency: Low Band: 9.75GHz / High Band: 10.60GHz
L.O. Frequency Stability: ±1.0MHz (Max.)@+25℃ / ±2.0 MHz (Max.)@-30℃~+70℃
L.O. Phase Noise: -50dBc/Hz@1KHz & -75dBc/Hz@10KHz & -95dBc/Hz@100KHz
Image Rejection: 40dB(Min.)
Output VSWR: 2.0:1(Max.)
Output Power: 0dBm (Min.)(at 1dB gain compression)
Connector Type: 75Ω Female Connector
DC Current Consumption: 80mA(Typ.)
Low/High Band Switching: Low Band:0Hz / High Band:22KHz±4KHz
POL. Switching Voltage: 10.5~14.0V @VP / 16.0~20.0V @HP
Package included:
1 x Satellite Receiver
potenza di uscita mininum 0dBm (a 1dB compressione guadagno)
Mininum Immagine Rifiuto 40dB
Ingresso: 10.7-12.75GHZ
LO: 9.75 / 10.6GHZ
Rumore: 0,3 dB
