Descrizione
Features:
Lightweight and portable, easy to carry.
Designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.
Power supply USB DC 5V output , more portable while Oscilloscope have USB interface.
The maximum differential test voltage(DC+AC）is 130V-1300V.
With simple design, it is easy and safe to use.
Descriptions:
Input cable length: Approx 60cm
Output cable length: Approx 90cm
Operating temperature: 0℃-40℃
Operating humidity: 10%-85%RH
Storage temperature: -30-70℃
Storage humidity: 5%-90%
Specifications:
Model: DP10013
Bandwidth: 100MHz
Rise time: 3.5ns
Range selection: 50X-500X
Accuracy: About 2 percent
Maximum differential test voltage: (DC+AC）130V-1300V
Maximum input common mode voltage: (DC+AC）130V-1300V
Output voltage: ≤3V
CMRR: ＞80dB（DC）, ＞60dB（100KHz）, ＞50dB(1MHz)
Overroad alarm: button light flashes
Power supply: DC 5V, USB supply.
Power: 0.85w
Size: 145*60*27mm/5.7″*2.4″*1.1″
Color: black
Package Included:

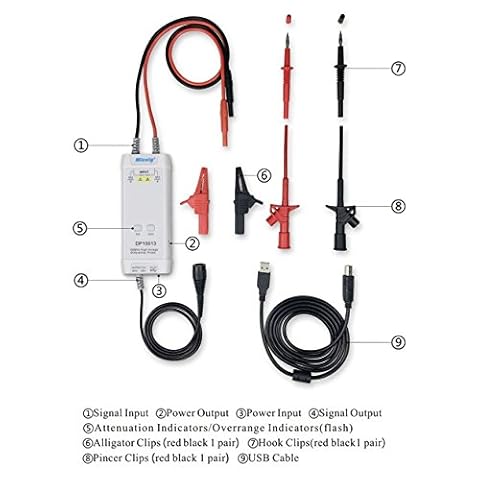

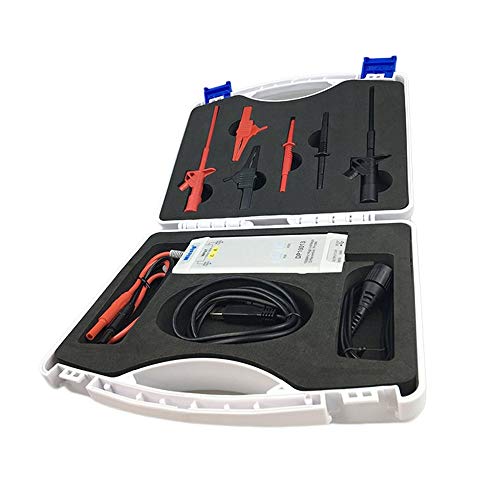

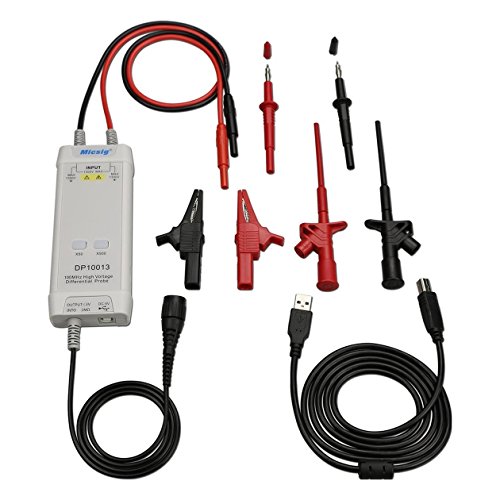

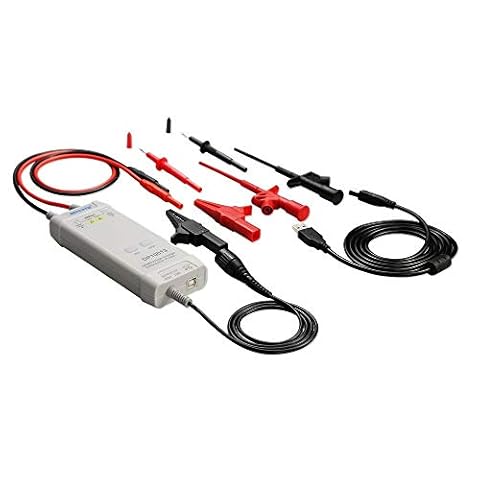

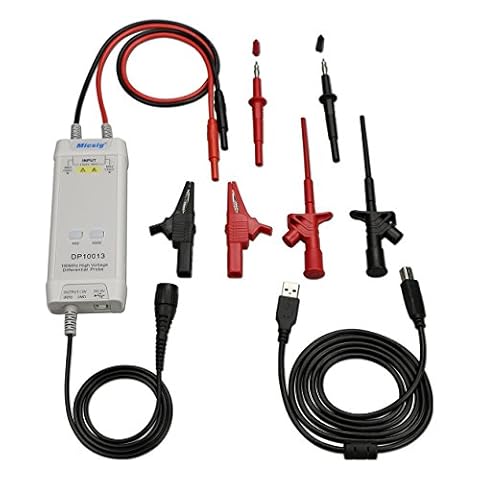

1 x Set of Micsig Oscilloscope High Voltage Differential Probe Kit
Notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
Please allow slight measurement deviation caused by manual measurement, thank you for your understanding.
Leggero e portatile, facile da trasportare.
Progettato per la misura del segnale differenziale ad alta tensione, per soddisfare la domanda di misura flottante.
Alimentazione Uscita USB DC 5V, più portatile mentre l’Oscilloscopio ha un’interfaccia USB.
La tensione di prova differenziale massima (CC + CA) è 130 V-1300 V.
Con un design semplice, è facile e sicuro da usare.
