Descrizione
Apply to cellular mobile communication system of signal, CDMA800, GSM900 / 1800, PHS, 3G (include TD-SCDMA/ WCDMA / CDMA2000), 2.4 GHz band forward compatibility of WLAN and other communications pattern.
Functions
Frequency range: (800-960) MHz, (1710-2500) MHz
Gain: 7 / 8 dBi
I/O impedance: 50 ohm/N connector
Ambient temperature: -10℃ – 60℃
Parameters coverage: 300 square meters
Size: 210 x 180 x 40mm
Biggest power: 100W
Joint model: N-K
Color: White
Package List

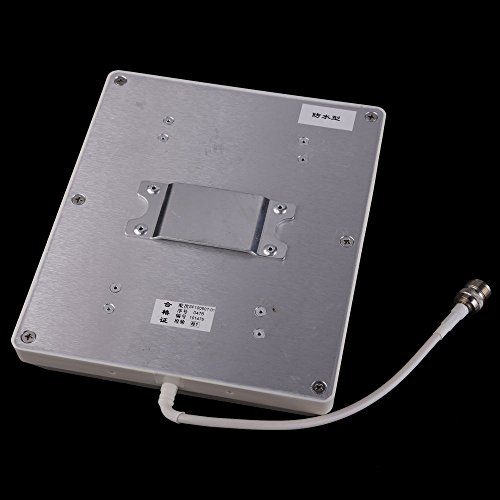

1x Panel Antenna
1x Antenna Terminal

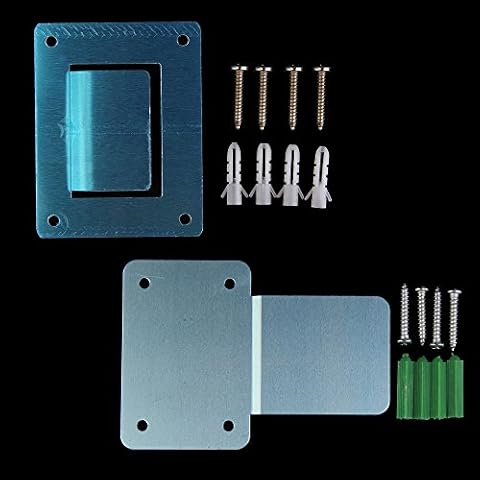

1x Retaining plate
Apply to cellular mobile communication system of signal, CDMA800, GSM900 / 1800, PHS, 3G (include TD-SCDMA/ WCDMA / CDMA2000), 2.4 GHz band forward compatibility of WLAN and other communications pattern.
Frequency range: (800-960) MHz, (1710-2500) MHz
Parameters coverage: 300 square meters
Biggest power: 100W
Size: 210 x 180 x 40mm
