Descrizione
Descriptions:

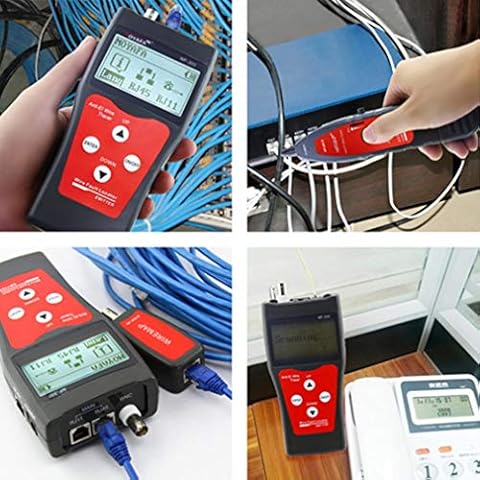

Enables cables to be located even when totally concealed.
With memory and storage functions.
LCD Screen shows test result clearly.

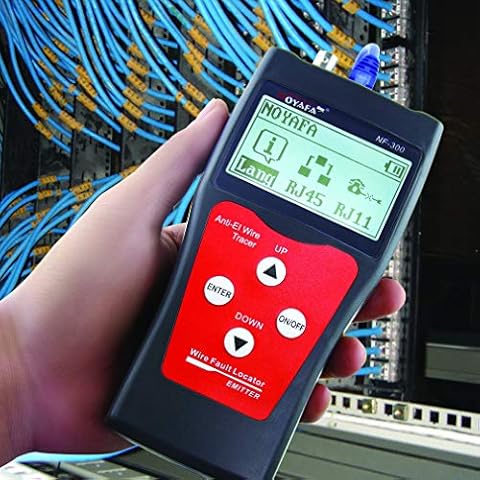

NF-300 Transmitter specifications
LCD screen 53x25mm
Tone frequency 225Hz
The Max. distance of tracing cable electrified wire: 3000m
Non-electrified wire: 2000m
The Max. distance of cablemapping: 2500m
The Max. distance of cable length testing: 1000m
Trace cable connected to switch: anti-jamming
Tone mode: 2 Tones, adjustable
Compatible with connectors: RJ11,RJ45,BNC,USB
LED lights display: Wiremap, tone, tracing
Cable map indication: LCD (#1- #8)
Shielded indication: LCD (#9)
Voltage protection: AC 60V/DC 42V
Low battery display: LCD (6.5V)
Battery type: DC9.0V（NEDA 1604/6F22 DC9V x 1pc, not included)
Dimensions: 185 x 80 x 32mm
NF-300 Receiver specifications
Frequency: 225kHz
The Max. working current: Less than 70mA
Earphone jack: 1
LED illumination: 2 LEDs
Battery type DC9.0V（NEDA 1604/6F22 DC9V x 1pc, not included)
Dimensions: 218 x 46 x 29mm

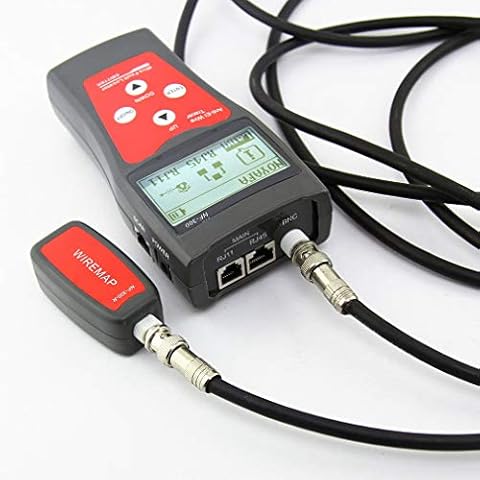

NF-300 Remote unit specifications
Compatible with connectors: RJ11,RJ45,BNC,USB
Dimensions: 107 x 30 x 24mm
Color: red & black

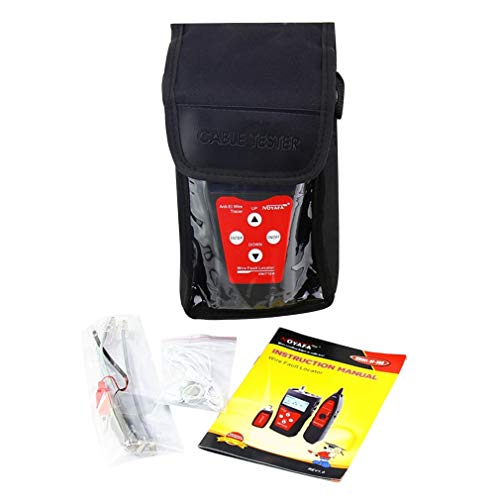

Package included:
1 x Transmitter
1 x Receiver
1 x Remote Recognizer
1 x User Manual
Notes:
1.Don’t connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharping part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Traccia e individua i cavi RJ45 (STP / 4-core), RJ11, USB, BNC.
Anti-jamming, in grado di funzionare sullo scambiatore e l’avvio del PC.
Misurare la lunghezza del cavo per RJ45, cavo BNC.
Controllare aperto, corto, incrociato, crosstalk per RJ11, RJ45, cavo BNC.
Individuare il punto di rottura e il punto di rottura in modo accurato.
