Descrizione
Features:
6N137 high-speed optical coupling, guarantee high speed without losing step.
Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.
Automatic half current function.
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.
Standard common anode single pulse interface
Descriptions:
For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor,
It is not suitable for more than 3A stepper motor.
Recommended to use a switching power supply DC24V power supply.
Specifications:
Working voltage:DC 10-35V
Rated maximum output: ± 3A, peak 3.5A.
Main color:Green
Size:75 x 50 x 33mm
Package included:

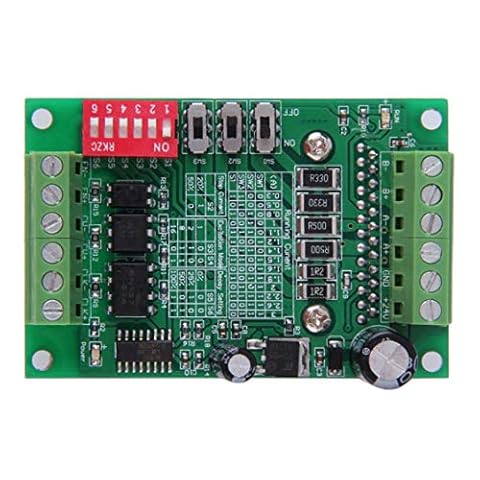

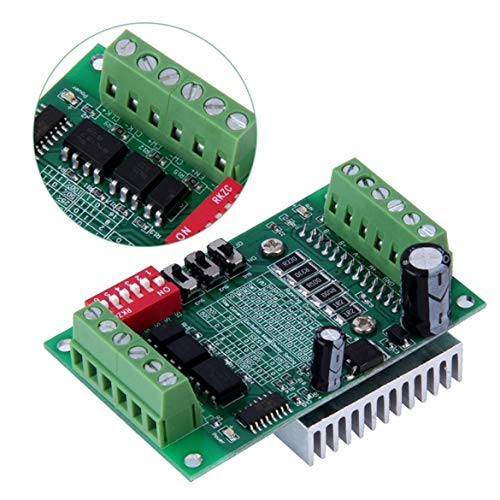

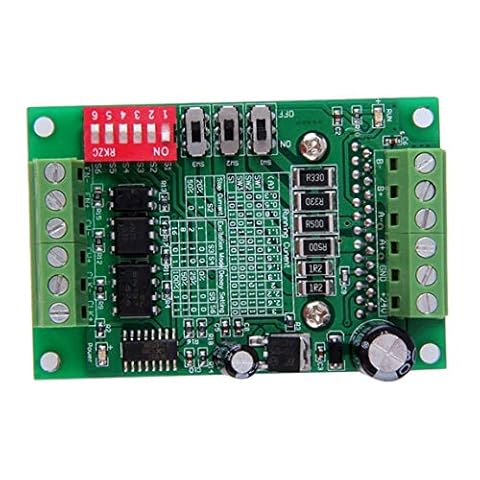

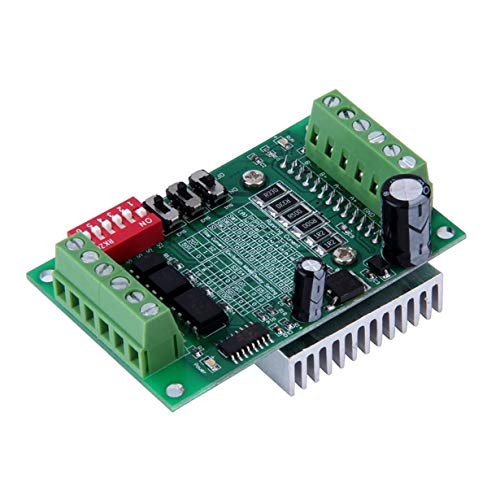

1x TB6560 3A driver board
Notes：
Please allow 0-2mm error due to manual measurement, thanks for understanding.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!
Accoppiamento ottico ad alta velocità 6N137, garanzia di alta velocità senza perdita di gradino.
Utilizzo del chip TB6560AHQ con spegnimento a bassa tensione, arresto di surriscaldamento e circuito di protezione da sovracorrente per garantire prestazioni ottimali.
Funzione semiautomatica automatica.
Suddivisione: intero passo, mezzo passo, passo 1/8, 1/16 step, un massimo di 16 suddivisioni.
Interfaccia standard a impulso singolo anodo comune
