Descrizione
INTRODUCTION

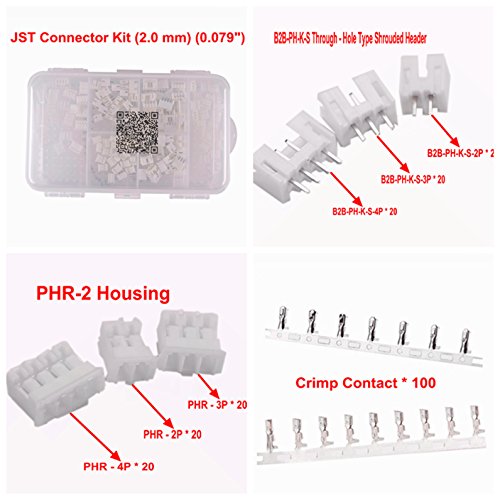

This kit includes PHR-2，PHR-3 and PHR-4 housing (20 units each)， through-hole type shrouded header （20 units each）and crimp contact (100 units).
APPLICATION
– Industrial & Scientific
– Tools & Home Improvement
– Toys & Games
– DIY Electronic Building Blocks
– Communications
– Cell Phones & Accessories
– Consumer Electronics
SPECIFICATION
– Pitch: 2.0 mm ((0.079 inch))
– Current Rating: 2A AC,DC (AWG #24)
– Voltage Rating: 100V AC,DC
– Temperature Range: -25 Degree Celsius to 85 Degree Celsius（including temperature rise in applying electrical current）
– Contact Resistance: Initial value/10m Omega max.
– After Environmental Testing/20 m Omega max.
– Insulation Resistance: 1000 M Omega min.
– Withstanding Voltage: 800V AC/minute
– Applicable Wire: AWG#32 to #24
– Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch)
DISTRIBUTION LIST

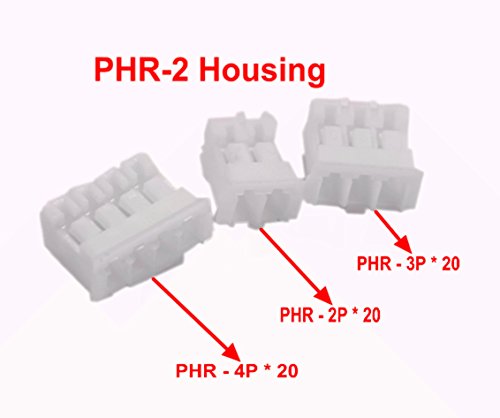

20 * PHR-2 Housing
20 * PHR-3 Housing
20 * PHR-4 Housing

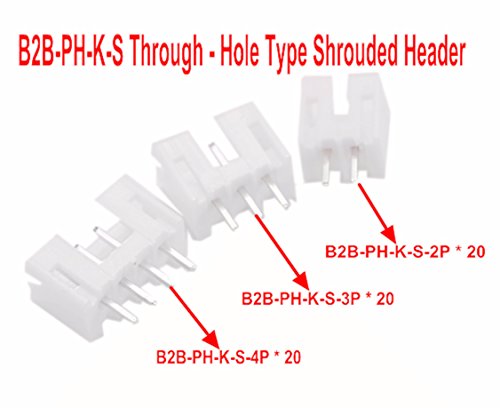

20 * B2B-PH-K-S Through-Hole Type Shrouded Header
20 * B2B-PH-K-S Through-Hole Type Shrouded Header
20 * B2B-PH-K-S Through-Hole Type Shrouded Header

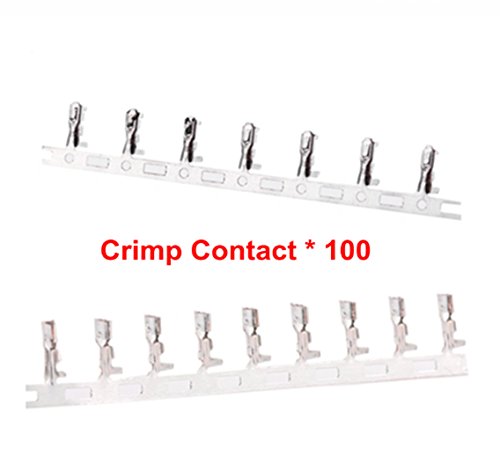

100 * Crimp Contact
1 * Two-sided Compartment Parts Box
Note: Due to different production batches, product’s color may be different
This Kit Includes PHR-2, PHR-3 and PHR-4 Housing (20 Units Each), Through-Hole Type Shrouded Header and Crimp Contact (100 Units).
Application for Industrial & Scientific/Computer/Tools & Home Improvement/Toys & Games/DIY Electronic Building Blocks/Communications/Cell Phones & Accessories/Consumer Electronics.
